Gold Series

For severe and extreme weather conditions including direct sunlight, coastal exposures, high humidity and snow belt northern exposures. In the past, only grey and black could be used in the most demanding applications. Gold Series allows the use of white or grey pile. Available in ULTRA SOFT FIN® and clear ULTRA FIN®.   Also, it is available in all standard colors, white, black, grey, & beige.

Downloads

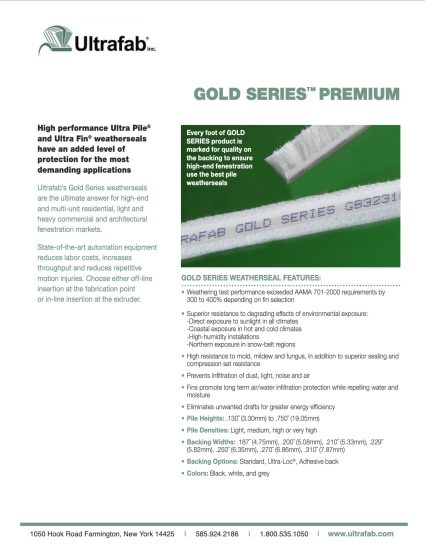

Ultrafab Gold Series Sell Sheet Cover
Download
Request a Quote

Available Options

Adhesive Backed

For applications without T-slots or kerfs, Ultrafab offers adhesive-backed solutions, including standard PSA, foam padded PSA and VHB (Very High Bond) PSA. These adhesives ensure secure bonding and adaptable performance for various residential, commercial, and architectural needs.

GOLD SERIES™

The Gold Series™ weatherseal is designed for extreme weather conditions, offering durability and high resistance to mold, mildew, and fungus. It allows the use of black, white or grey pile, previously unsuitable for demanding environments, and is available in ULTRA SOFT FIN® and ULTRA FIN® versions. With specially marked fenestration products against harsh elements like sunlight, coastal exposure, humidity, and snow.

ULTRA FILL®

ULTRA FILL is a semi-rigid material that is added to the bottom of the ULTRA PRO U shaped backing to increase friction once pile is inserted into a profile. This high friction material aggressively eliminates movement of the pile during window processing. This process meets the demands of deep T-slot configurations while ensuring zero pull from the end of the profile to eliminate waste during cutting operations.

ULTRA LOC®

Ultrafab’s backing option features alternating tabs on both sides to secure the backing in place, even when T-slots are slightly oversized. It comes in three versions: S7 with .015″ tabs, S9 with .025″ tabs, and S10 with .030″ tabs, ensuring adaptability to different applications and tolerances.

ULTRA PRO®

This U-shaped backing option is available across all product lines. Allowing for on-line insertion in extrusion and pultrusion applications, securing the weatherstrip in place to prevent fallout during window fabrication and eliminating the need for both staking and manual insertion. The backing size is customizable to accommodate different T-slot geometries.

ULTRA REACH®

A longer-reach finned weatherseals offers extended sealing capabilities for inconsistent nominal gaps, providing an effective barrier against air, water, and noise infiltration. Available in ULTRA FIN® for durability or ULTRA SOFT FIN® for smooth operation, these weatherseals ensure adaptability and enhanced performance in variable applications.

Description

ULTRA PILE® and ULTRA FIN® Weatherseals: Ultrafab’s answer for the most demanding applications

Designed for severe and extreme weather conditions in all colors.

  • Direct exposure to sunlight in all climates
  • Coastal exposure in hot and cold climates
  • High humidity installations
  • Northern exposure in snow-belt regions

The ultimate answer for these fenestration markets:

  • High end residential
  • Multi-unit residential
  • Architectural
  • Light commercial
  • Heavy commercial

Other specifications:

  • Weathering test performance exceeded AAMA 701-2000 requirements by 300 to 400% depending on fin selection
  • Gold Series pile uses state-of-the-art components and Ultrafab’s unique ultrasonic technology to build an extremely durable, cost effective product
  • High resistance to mold, mildew and fungus, in addition to superior sealing and compression set resistance
  • Fins promote long term air/water infiltration protection
  • Pile height and backing width are always uniform because of Ultrafab’s unique non-woven manufacturing systems
  • Ultrafab ultrasonically welds and assembles the fin, fibers and backing into an integrated, unified assembly will not break apart during fabrication or while in use
  • State-of-the-art automation equipment reduces labor costs, increases throughput and reduces repetitive motion injuries. Choose either:
    • Off-line pile insertion at the fabrication point, or
    • In-line pile insertion at the extruder
  • A backing option that inserts easily, but locks-in for secondary operations is available: ULTRA LOC® for off-line use

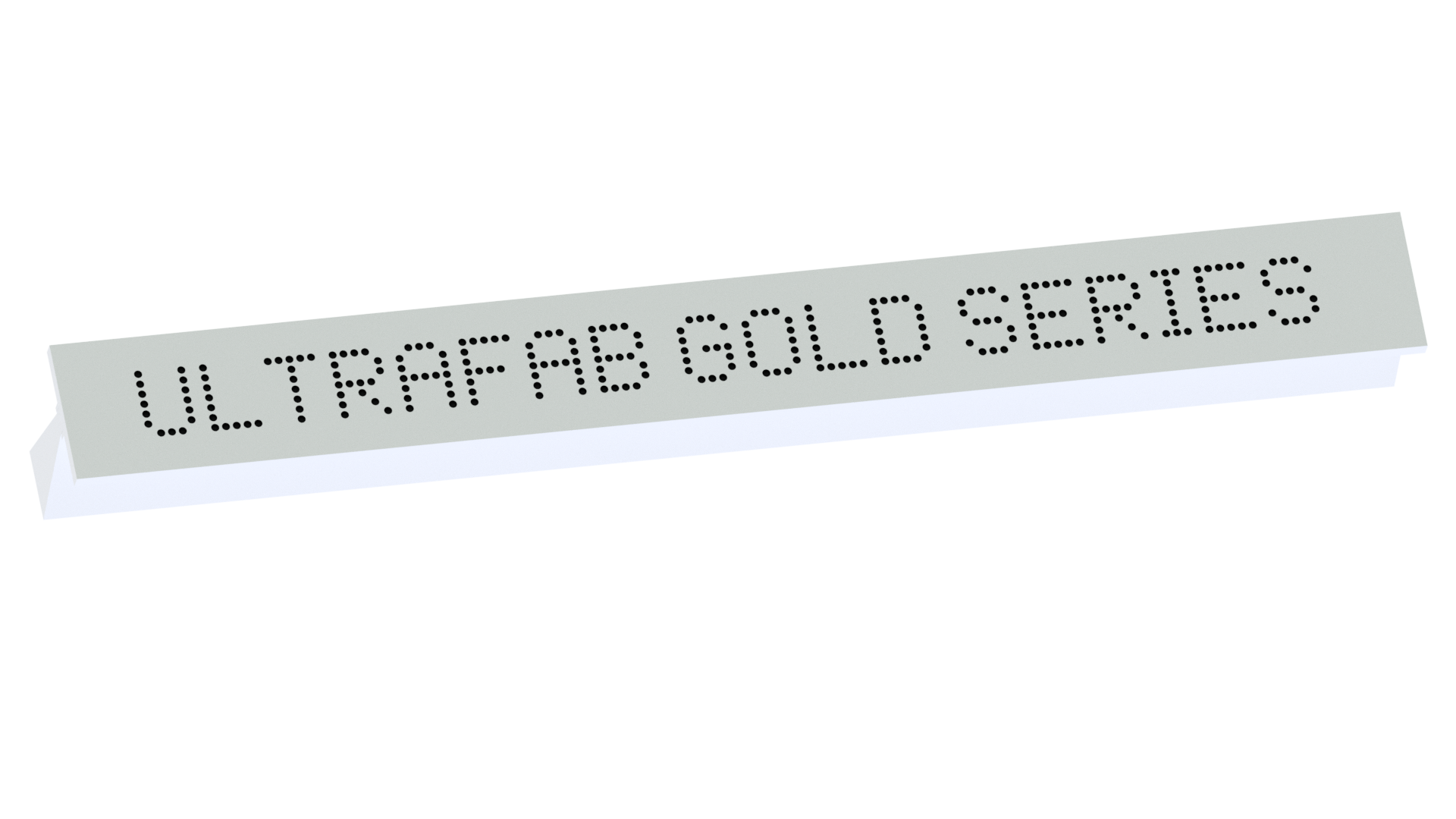

  • Every foot of Gold Series products is marked for quality on the backing to ensure your high-end fenestration are using the best pile weatherseals

Related products

Looking for something else? Need something you don't see?

Ultrafab offers a wide range of products beyond those shown here. Contact us for more information.

Ultrafab Innovations

Leveraging cutting-edge technologies, Ultrafab is committed to driving innovation and operational excellence. These advancements enable us to automate complex tasks, enhance final product performance, and provide unparalleled efficiency across our processes

Ultrasonic Welding

Ultrafab uses ultrasonic welding to enhance the durability and performance of our products. This advanced process employs high-frequency vibrations to fuse materials together without adhesives or fasteners, ensuring precise and reliable bonds and preventing separation during fabrication or use. From weather seals to specialized components, ultrasonic welding enhances product integrity and durability. By leveraging this technology, Ultrafab achieves superior performance and consistency in our manufacturing process compared to our competitors.

3D Additive Manufacturing

By utilizing 3D printing, Ultrafab efficiently designs and produces precise components for our production equipment. Additionally, this technology allows for the rapid creation of intricate, quick-turn tooling and fixtures for custom prototypes. This results in the ability to provide fit and form samples at reduced costs and in a shorter timeframe.

Rapid Prototyping

Ultrafab’s rapid prototyping quickly develops and qualifies new product concepts, allowing for faster iteration and refinement. Ultrafab is home to an experienced onsite R&D team and model shop, equipped with routers, lasers, robotics, and automation. By employing advanced technologies, functional models are created to identify design flaws early, streamline production processes, and shorten development time.

Laser Cutting

Laser cutting offers exceptional precision and customization, allowing for the creation of intricate shapes and tailored designs to meet specific needs. This method ensures clean, accurate cuts across various materials, making it ideal for producing components with unique specifications.

Dedicated Design Services

There is no standard sealing system that works for all applications. Ultrafab’s specialty products division provides innovative and timely solutions for a broad variety of applications. We have onsite engineers and product development staff to help determine exact solution for an application. Ultrafab also carries ready-to-ship samples of standard product offerings to help guide decision making. Contact us today.
