QD Series
Ultrafab industrial brush seals (or skirting seals) are designed to meet the demands of the most damaging high traffic industrial or commercial applications – whether they use extruded sealing or brush based elements. Our two popular industrial brushes include the Ultrafab® Q Series and Ultrafab® QD Series. These seals and sweeps provide you with the options you need to build a more efficient product at a reduced cycle time.
Features & Benefits

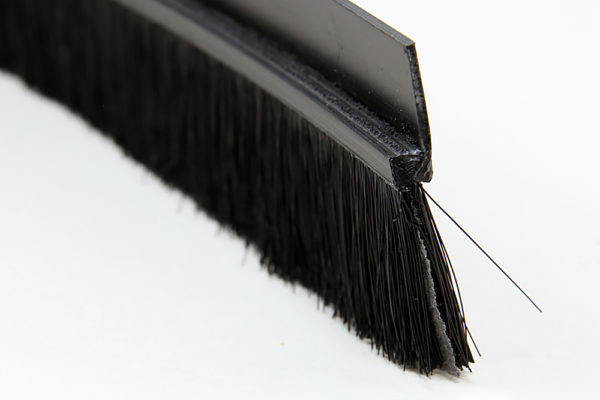

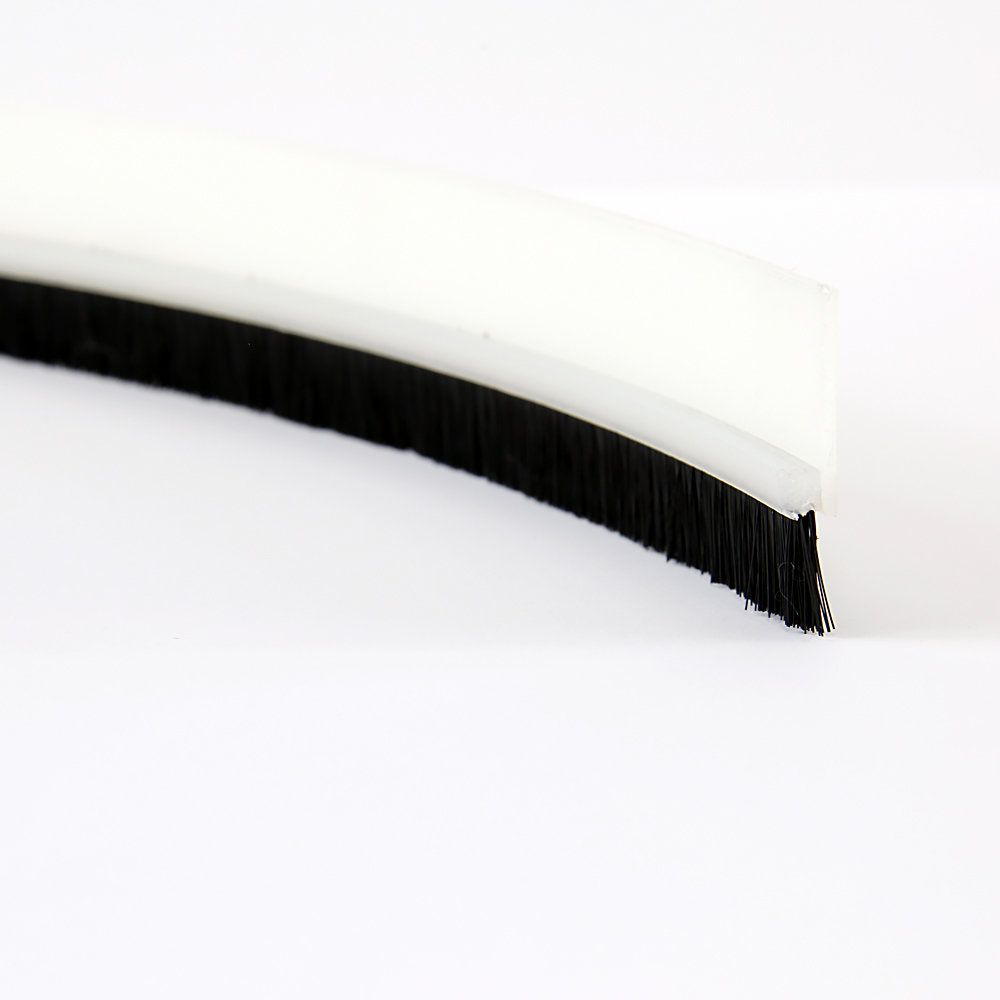

Eliminate the need for an aluminum extrusion with an integrated plastic mounting tab that provides full flexibility for ease of assembly and overall reduction in shipping costs.
Flexible Functionality
- Customized sealing and endurance available when fin, yarn, and monofilament are combined or used individually
- Maximized possible seal configurations when seal is welded directly to backing
- Easy-to-penetrate mounting tab by standard screw, no pre-punched holes required
- Tab welded skirting can bed along a radius for a complete seal
- Unrestricted shipping length when shipped on a roll
- Easy mounting with available stamped holes or adhesive
- See industrial brush seal advantages below for complete list
Effective
- Decreased friction and interference when fin is cut below media surface
- Prevents dirt, water, and air infiltration with high density seals
- Increased environmental sealing with available solid fin
Durable
- Maximized resistance to compression when regular fibers are mixed with extra durable monofilaments
- Long-term resistance and resiliency to environmental elements with added fins
- Maximized resistance to compression with yarn and monofilament hybrid
- Each fiber individually welded to the backing to eliminate pull-out
- Chemical resistant, non-corrosion
Specifications
- Materials: standard polypropylene, nylon backing or filaments with monofilaments or fin options
- Colors: black, white, gray, brown, beige
